Enterprise HR Conversational AI Platform

Problem

Covestro AG’s existing HR conversational AI was a legacy monolith struggling under enterprise scale. Every layer was a liability.

• Bursty traffic timed out sync endpoints — the legacy monolith could not absorb spikes.
• No continuous evaluation — factual regressions slipped into production silently.
• PII compliance was reactive, not architectural — sensitive data flowed through logs, caches, and LLM calls without a hard boundary.
• Trust boundaries between services were weak — every hop assumed implicit trust.
• Downtime was not an option — migration had to happen on live production traffic.

General Architecture

A bird’s-eye view of the full platform. The frontend talks to an API gateway, which fans into the LangGraph multi-agent core. The agent layer reads and writes through a data plane built on OpenSearch (semantic + lexical retrieval), RDS (structured HR records), S3 (document store), and ElastiCache (semantic cache). AWS Bedrock is the single LLM gateway — one integration, multiple model providers.

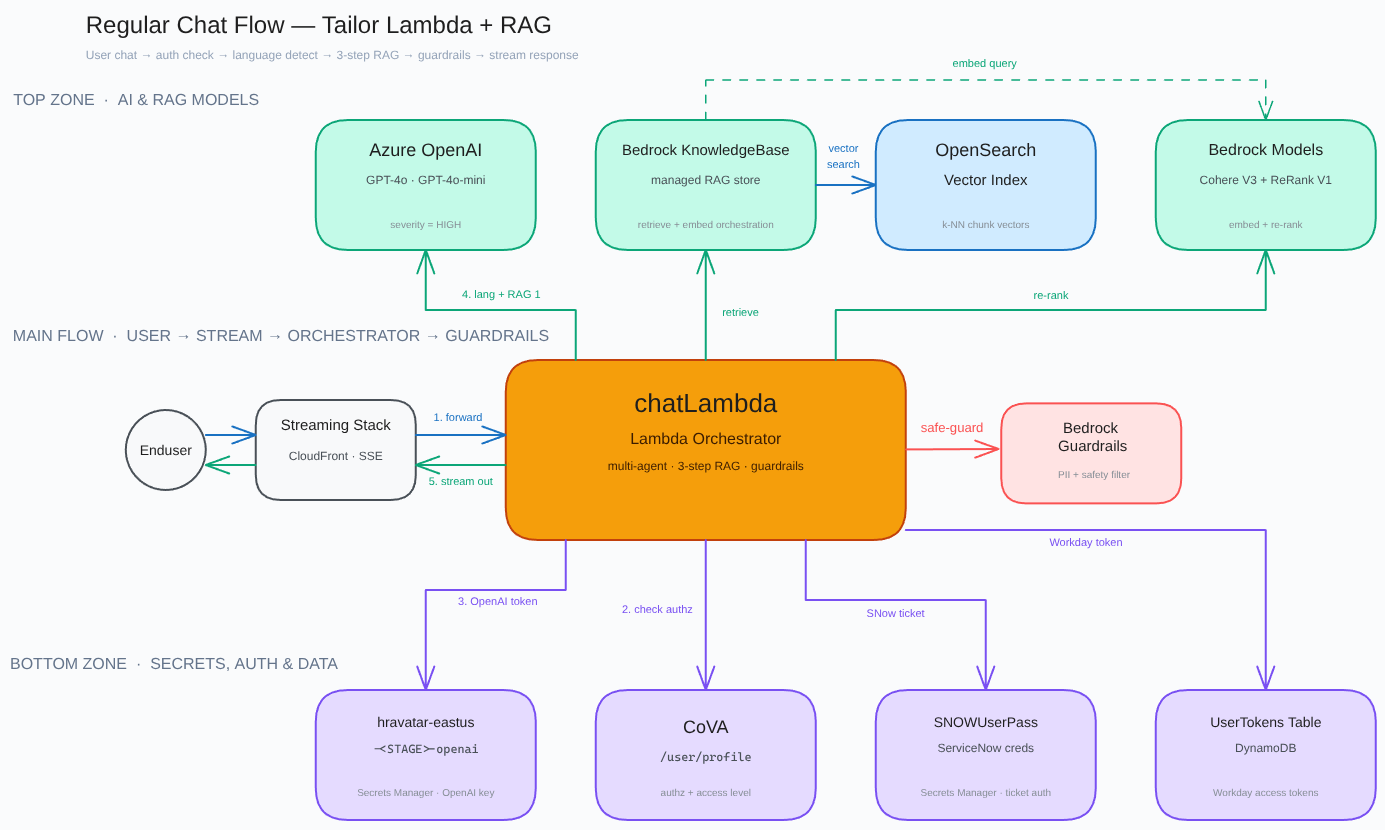

Regular Chat Flow

The happy path for a single user turn. A request enters the router agent, which classifies the intent and selects the right sub-agent (policy, leave, payroll, benefits). The selected agent retrieves grounded context, reasons over it, and emits a response checked against guardrails before it ever reaches the user. The full state machine is LangGraph-native so every transition is traceable.

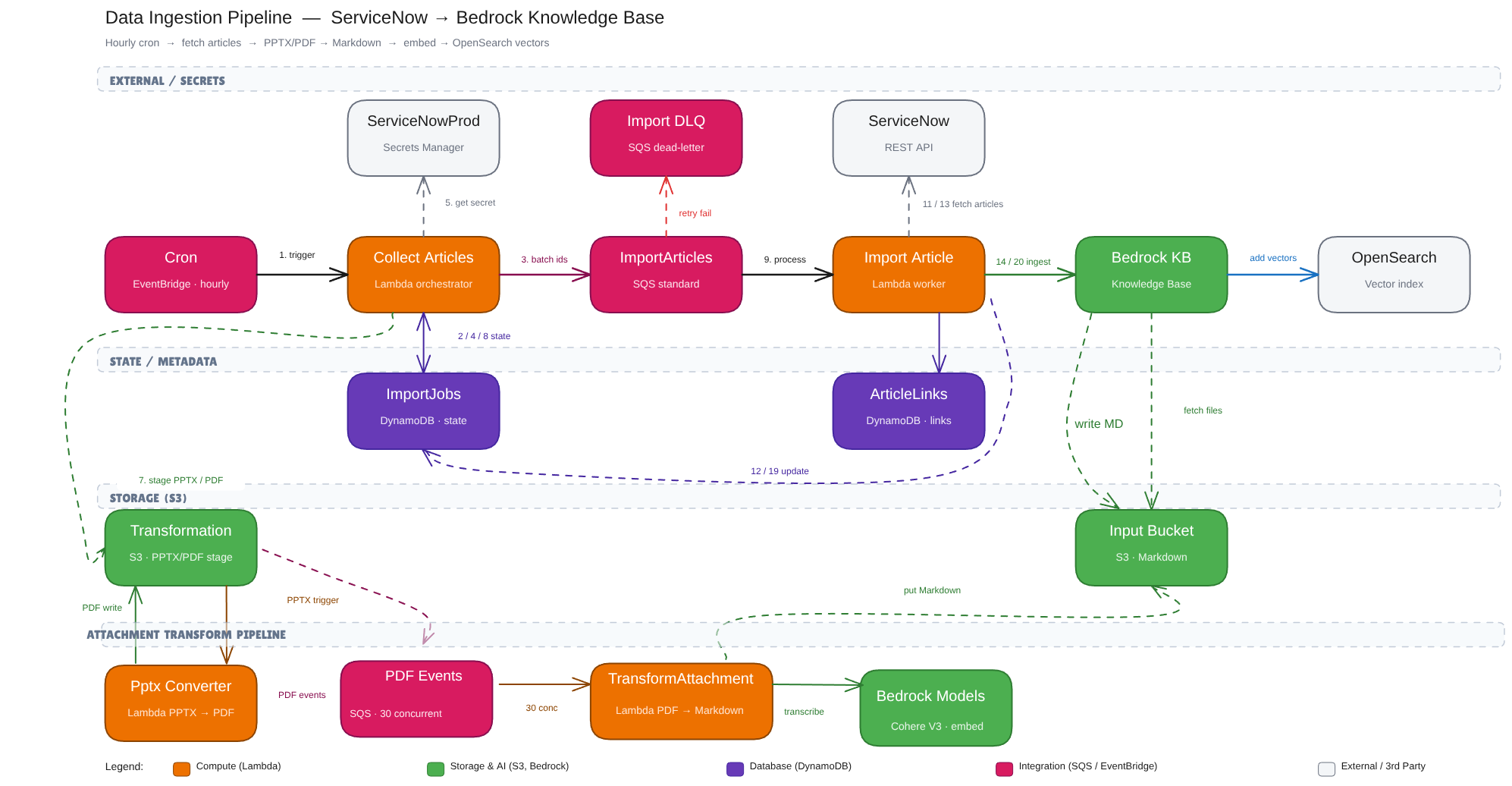

Data Ingestion Pipeline

HR documents from Workday and the knowledge base land in S3, which fires events into Lambda chunkers via SQS. Chunks are embedded and written to OpenSearch alongside their metadata. The pipeline is fully asynchronous and retries on failure — bursty ingest from policy updates no longer blocks the live serving path.

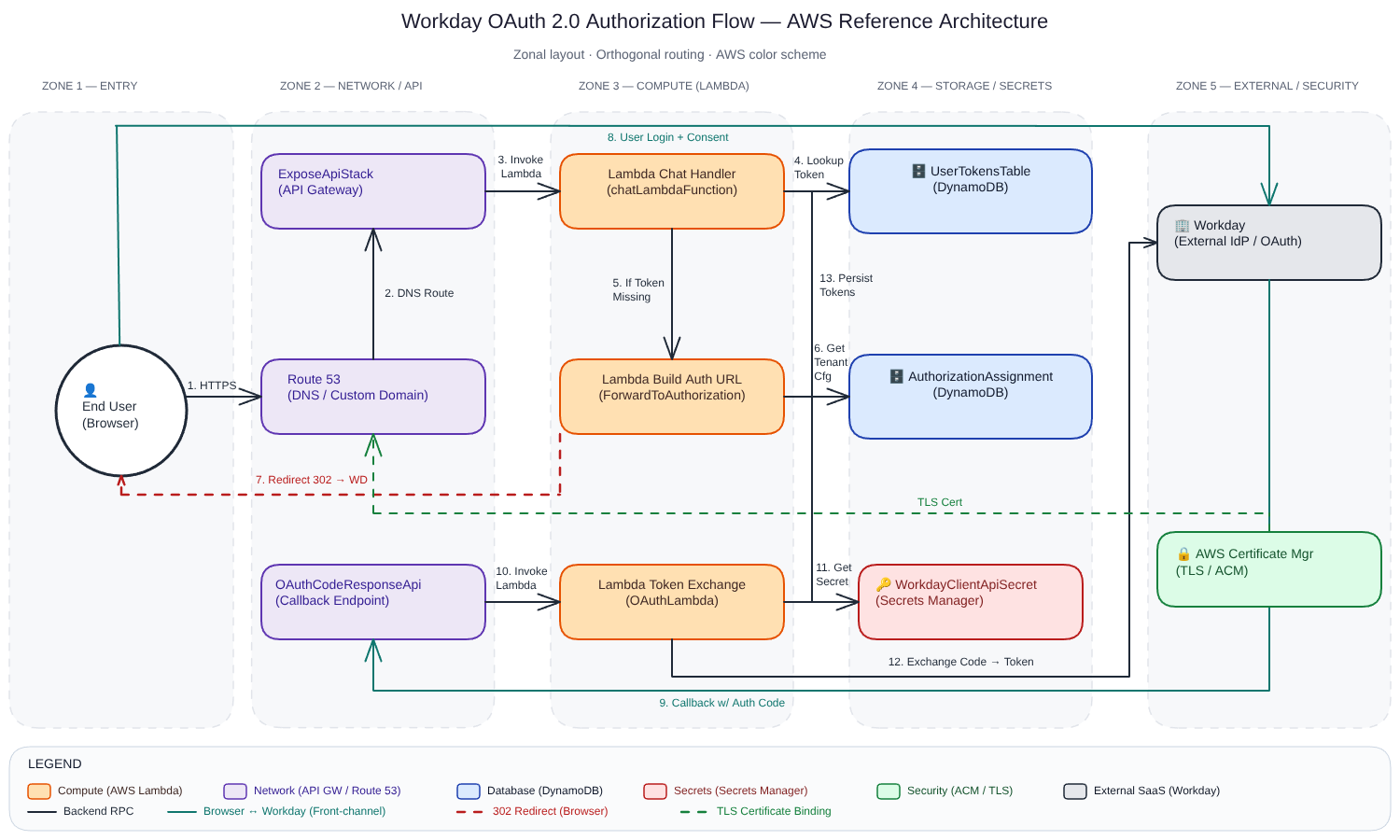

Workday SSO Auth Flow

Enterprise SSO is non-negotiable at Fortune 500 scale. The platform federates with Workday for identity, exchanges tokens at the gateway, and carries a per-user context through every downstream agent call. This isolates HR data per employee and makes audit trails clean.

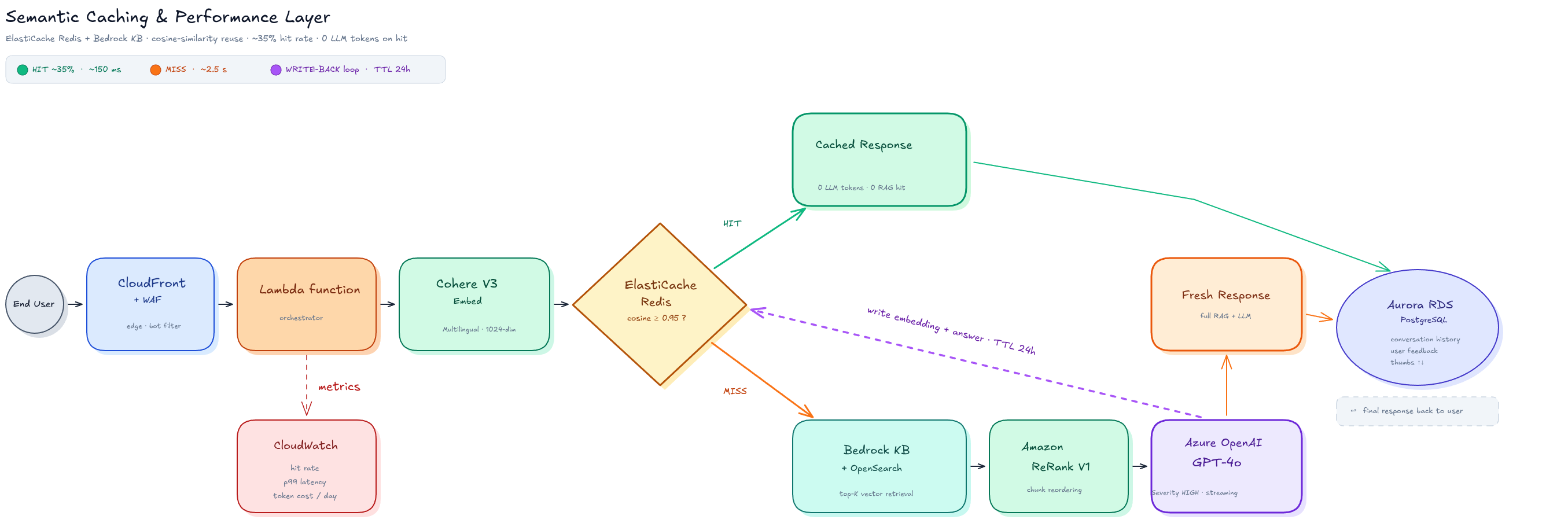

Semantic Caching Layer

Challenge HR questions repeat constantly, but phrased a hundred different ways. A plain key cache never hits. Without caching, every repeat query burns Bedrock spend and tail latency.

Solution

HR questions cluster around a small set of intents phrased a thousand different ways. A semantic cache on ElastiCache matches incoming queries to prior answers by embedding similarity. When the similarity score crosses a per-domain threshold, we skip the LLM entirely. This cuts both Bedrock spend and p95 latency on repeat queries. Threshold tuning per HR sub-domain was the hard part — too loose poisons answers, too tight defeats the cache.

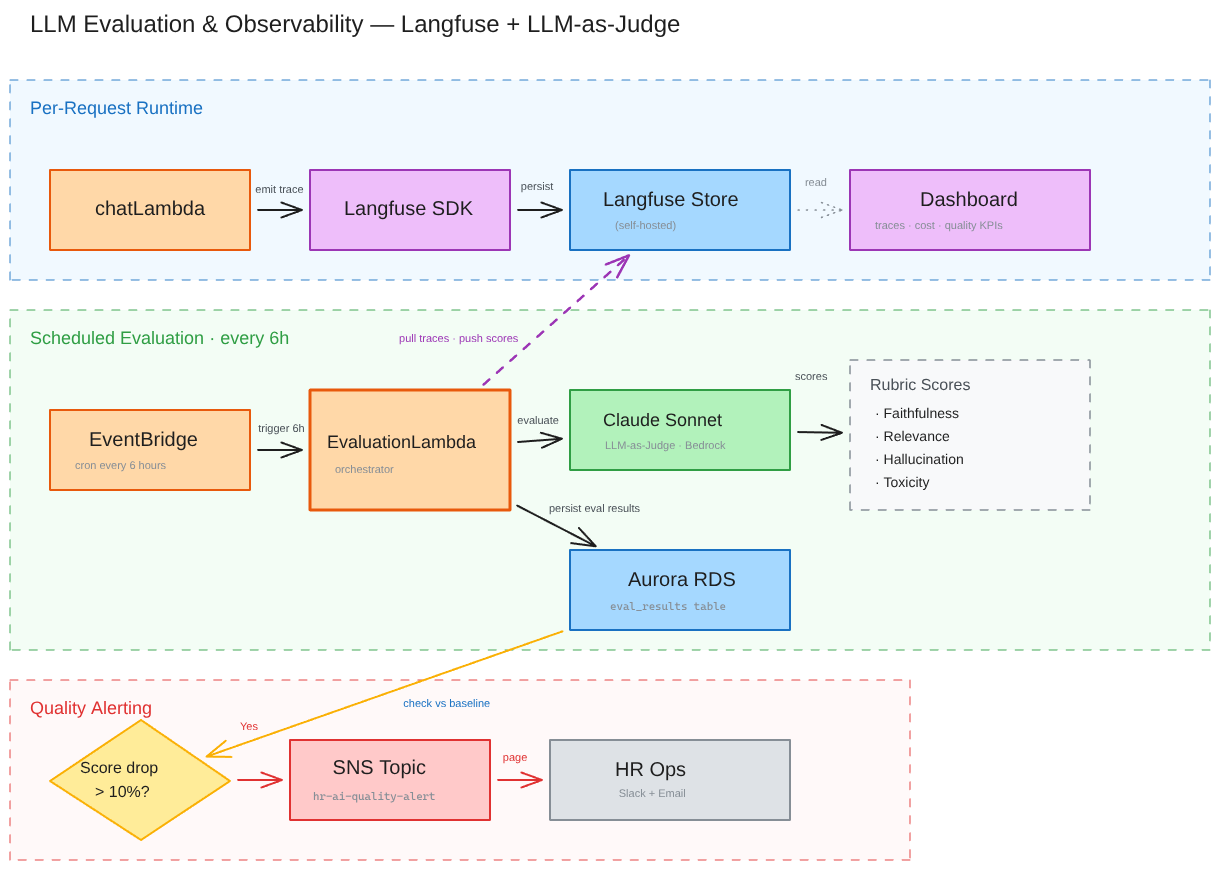

Langfuse Evaluation Loop

Multi-agent failures are invisible to unit tests. The fix is continuous LLM-as-judge evaluation on Langfuse. Every production trace can be replayed and scored on factuality, helpfulness, and policy adherence by a judge model. Regressions on any sub-agent surface in dashboards before users notice — and we can pin a regression to a specific agent and prompt version, not to a vague “the bot got worse.”

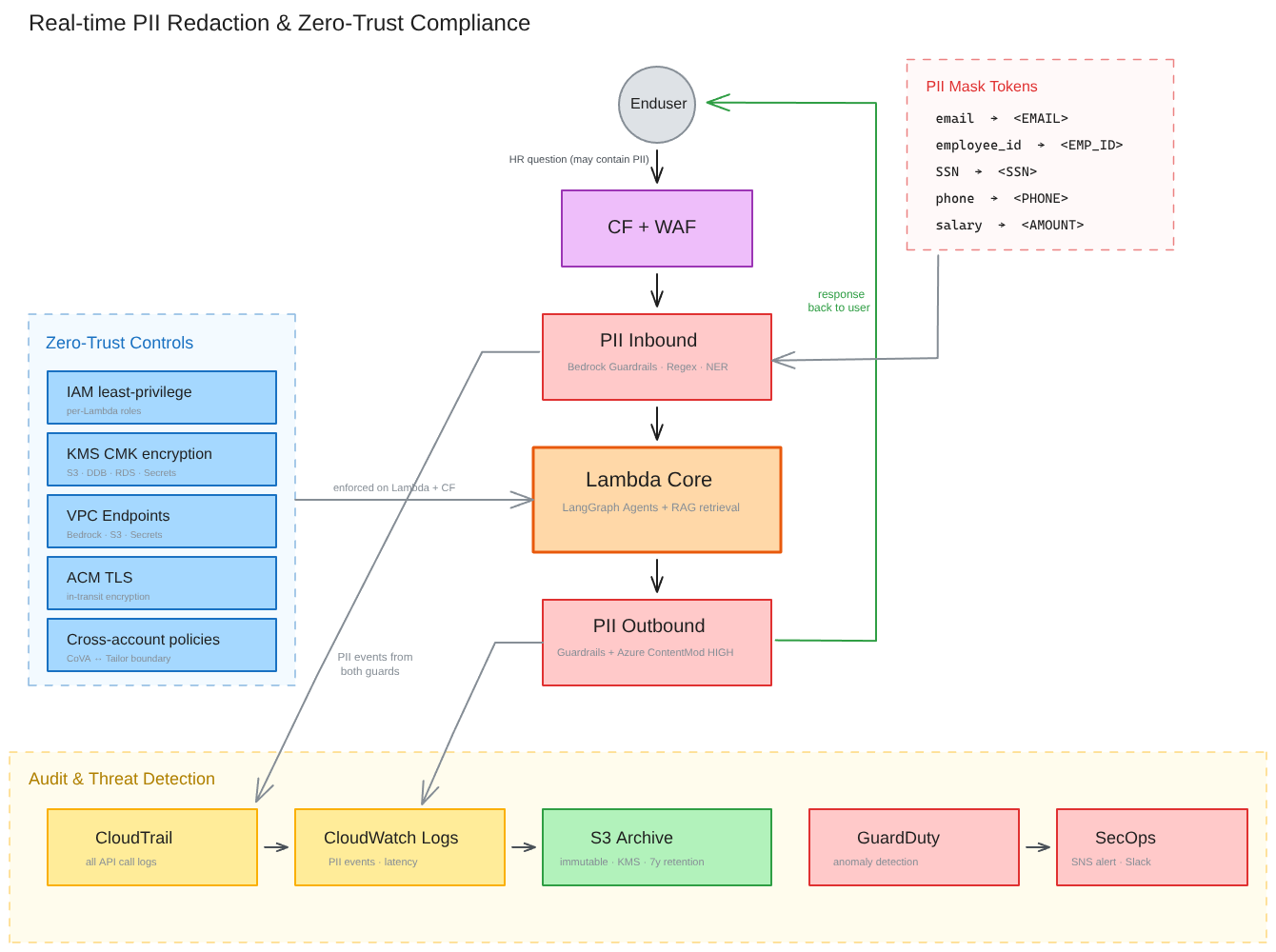

PII Zero-Trust

Challenge At Fortune 500 scale, PII leaking into logs, caches, or a stray LLM call is a compliance incident, not a bug. The system needed PII boundaries that hold by construction, not by policy.

Solution

Compliance is an architectural constraint, not a feature. PII is redacted at the boundary — before logs, before the semantic cache, before any Bedrock call. Between microservices, every hop authenticates and authorizes from scratch (zero-trust). The latency cost is real but bounded; the upside is eliminating entire classes of compliance incidents.

Outcome

• Migrated production HR conversational workload for a Fortune 500 client with no downtime.
• Event-driven microservices absorbed traffic spikes that broke the legacy monolith.
• Semantic caching reduced Bedrock spend and tail latency on repeat HR queries.
• LLM-as-judge eval loop runs continuously via Langfuse — factual regressions caught before deploy.
• Zero-trust + real-time PII redaction meet enterprise compliance bars by construction, not policy.
• Workday SSO integrated cleanly for per-user context isolation across the agent layer.
